Residential electrical · Cairns & surrounds

Switchboard Upgrades & Generator Fixes In Cairns

Switchboards As The Weak Point

Switchboards installed decades ago were designed for a house that ran a fridge, a television and not much else. Add air conditioning, induction cooking, solar and a car charger, and an old board with ceramic fuses is well past what it was built for. At Cairns City Electrics, we handle switchboard upgrades in Cairns, replacing outdated boards with properly rated ones and fitting the circuit protection current standards require. That usually means modern combination circuit breaker/residual current devices (RCBOs, also called RCD-MCBs), so every circuit gets its own overload and earth leakage protection, along with full installation surge protection to shield the wiring and everything plugged into it. Replacing an ageing installation this way future-proofs the property for whatever gets added next, and paying for quality now is what buys peace of mind later. We also install generator change-over switches, which let a home run safely from a generator without any risk of back-feeding the network. If a board keeps nuisance-tripping, fault finding usually needs to happen alongside the upgrade rather than after it. Call 0448 822 282 to arrange an inspection.

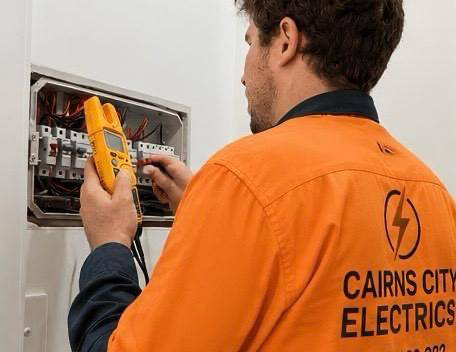

Electrician in branded shirt testing switchboard circuit breakers with a yellow multimeter - Cairns City Electrics, Cairns

Signs A Board Needs Replacing

Some boards fail obviously and others just quietly stop being adequate, so it helps to know what to look for.

Ceramic rewirable fuses date a board immediately. They offer no earth leakage protection and can be rewired incorrectly with wire that defeats the protection entirely.

Missing safety switches are a real gap rather than a technicality. Circuit breakers protect the wiring, while safety switches protect the person touching the appliance, and RCBOs combine both on a single circuit.

A board with no spare capacity blocks anything new. Solar, air conditioning and car chargers all need their own circuits, and there has to be somewhere to put them, along with room for surge protection.

Scorch marks, warmth or a burning smell at the board need attention immediately. These indicate connections generating heat, which is a fire risk rather than a maintenance item.

Good to know

Frequently Asked Questions

: A circuit breaker protects the wiring by cutting power when a circuit draws more current than it's rated for. A safety switch protects people, detecting current leaking to earth through a person or a faulty appliance and disconnecting in a fraction of a second.
: New additions need dedicated circuits, and older boards often have no physical space or spare capacity for them. The incoming supply and main switch also have to be rated for the combined load.
: It isolates the home from the grid before connecting it to a generator, so power can't flow back out into the network. Without one, a generator can energise the supply lines outside, which is dangerous for anyone working on them.

Completed cafe bar fit-out with installed pendant lights above a timber bench - Cairns City Electrics, Cairns

Book a visit

Talk To Us About Switchboard Upgrades & Generator Change-Over Switches

Call and describe the job, or send the details through and we'll come back to you with what's involved.

Call 0448 822 282 Contact page
